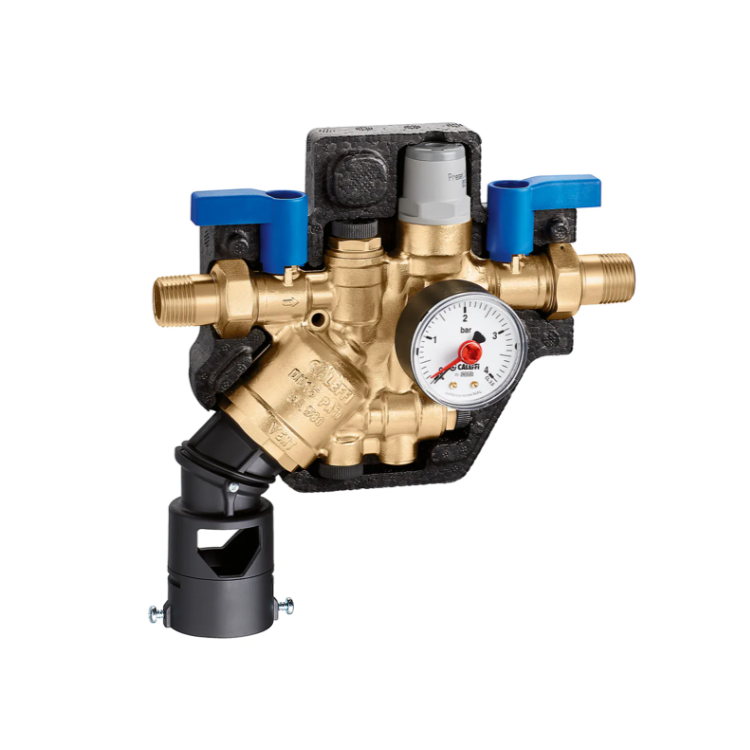

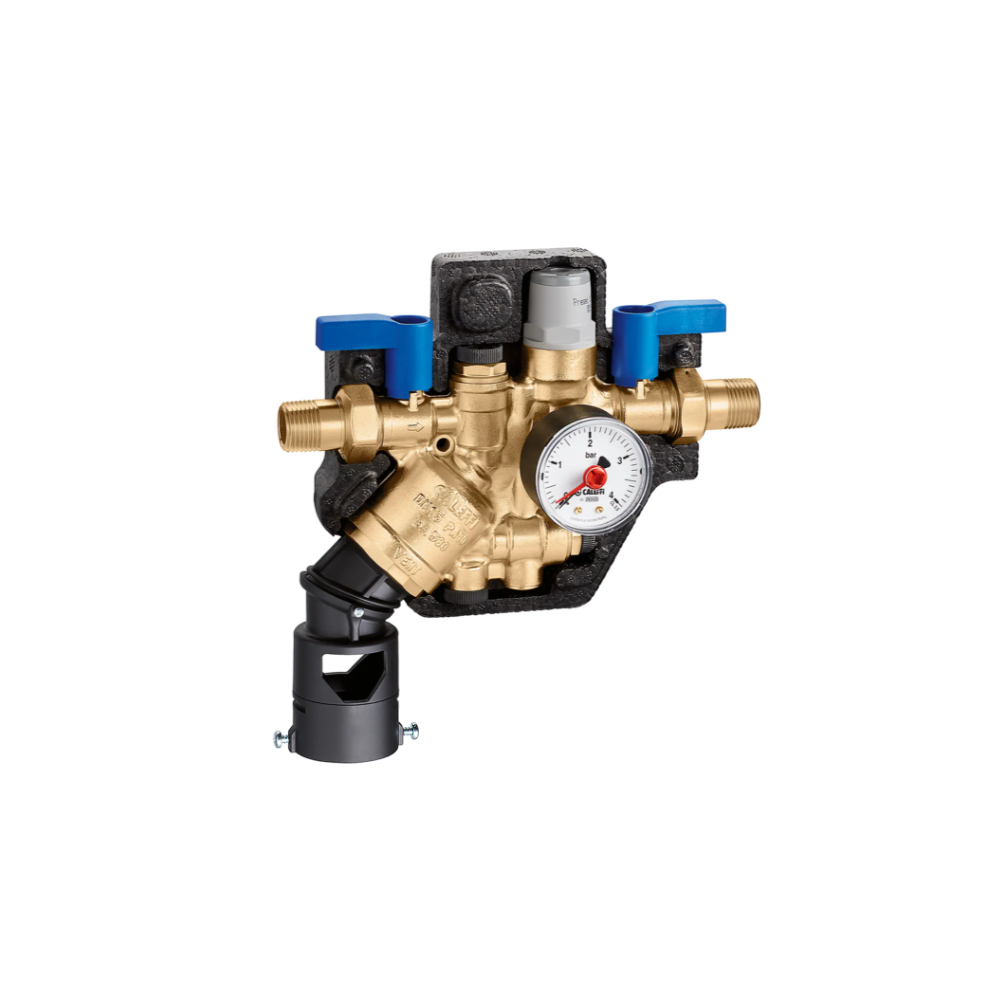

Compact automatic loading unit, with disconnector, valves and filter Caleffi 580011

Product Code: 580011
See details
€215.98
Attachment size
Quantity
Availability 94 items
Delivery time: 5-7 business days

Made in Italy Products

Exclusive Brands

Pre and Post Sales Assistance

Customization Options

ITEM NUMBER: 580011

TECHNICAL FEATURES.

  • Compact automatic filling unit conforming to EN 1717 with type BA backflow preventer, shut-off valves, filter, pressure test sockets for backflow preventer check, pressure reducer
  • For horizontal or vertical installation
  • Brass body
  • With insulation
  • Filling unit adjustment range: 0.8-4 bar.
  • Pmax operating: 10 bar.
Tmax
  • operating: 65 °C.
  • Disconnector certified to EN 12729
  • Pressure reducer to EN 1567
  • PATENT

MATERIALS

Disconnector:

  • Body: brass EN 12165 CW617N
  • Retainers: POM-EPDM
  • Springs: stainless steel EN 10270-3 (AISI 302)
  • Diaphragm and seals: EPDM

Filling unit

  • Body: brass EN 12165 CW617N
Cover
  • : PA6G30
  • Plug
stem
  • : anti-dezincification alloy EN 12164 CW724R
  • Diaphragm and seals: EPDM

Ball shut-off valve

  • Body: brass EN 12165 CW617N
Ball
  • : anti-dezincification alloy EN 12164 CW724R
  • Hydraulic seals: EPDM
  • Lever knob: PA6G30

Filter

  • Body: stainless steel EN 10088-2 (AISI 304L
  • )
  • Filter mesh light: 0.4 mm

Insulation

  • Material: EPP
Density
  • : 30 kg/m3

Performance

  • Operating fluid: potable water
  • Max operating pressure: 10 bar
  • Max operating temperature: 65 °C

CALEFFI

Caleffi constantly strives to pursue coverage of the most important standards suggested by ISO standards.

Material Ottone
Color Cromato
