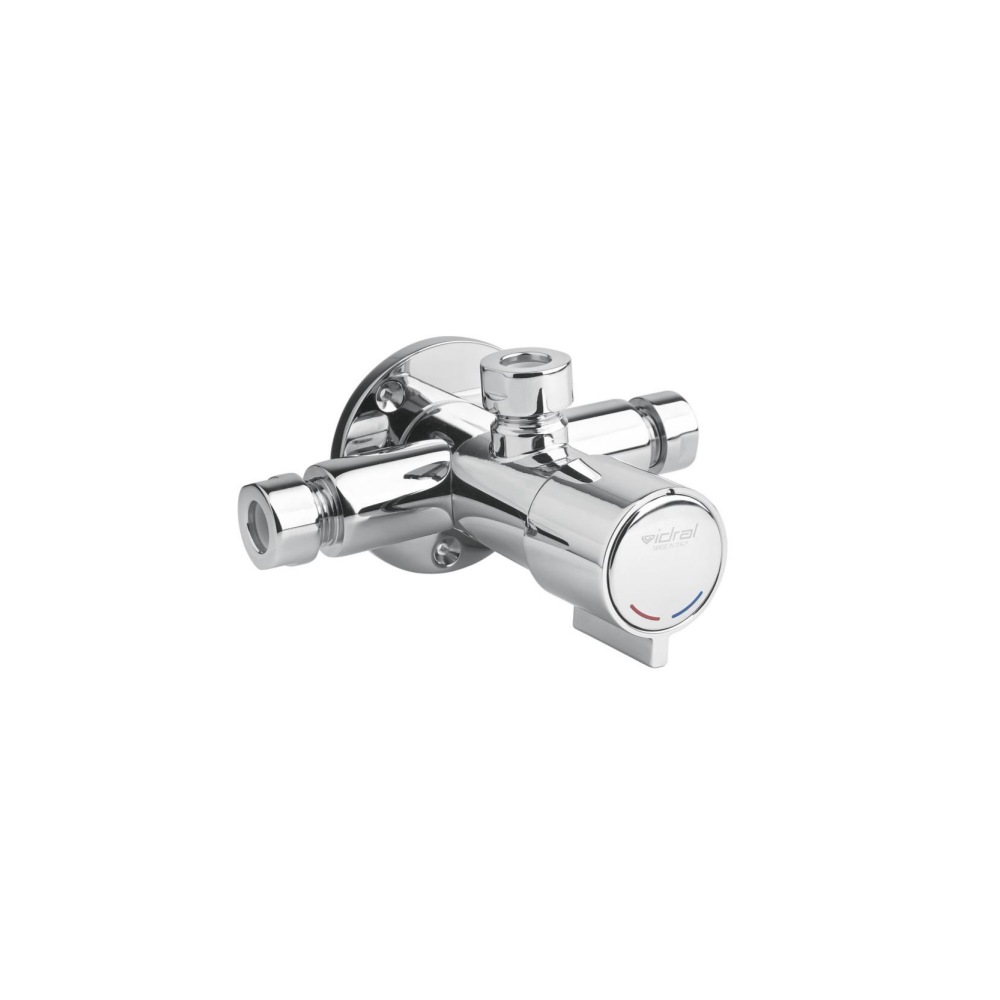

ITEM NUMBER: 08533F

TECHNICAL FEATURES

• Type: Timed shower mixer
• Finish: Chrome plated
• 1/2" connections with caps and ogive for pipe d.14
• mm
• With anti-blocking system
• Check valves and filters
• Flow rate: 8l/min (w/limiter)
• Supply pressure: Min 1 - Max 5 Bar
• Recommended pressure: 2-4 bar
• Supply temperature: 5-65 °C
• Supply temperature; 15 sec.
• @ 3 bar (tolerance: 15 ±5 sec.), with possibility of reduction (-40%)
• Shut-off device: TEMPORIZED ANTI-VANDAL VITON: anti-vandal device allows water to be dispensed only after the button is released, and ensures that it stops even in case of voluntary blocking of the button (flooding attempt)

DIMENSIONS

CERTIFICATIONS
