ITEM CODE: I84N0-01000

TECHNICAL FEATURES

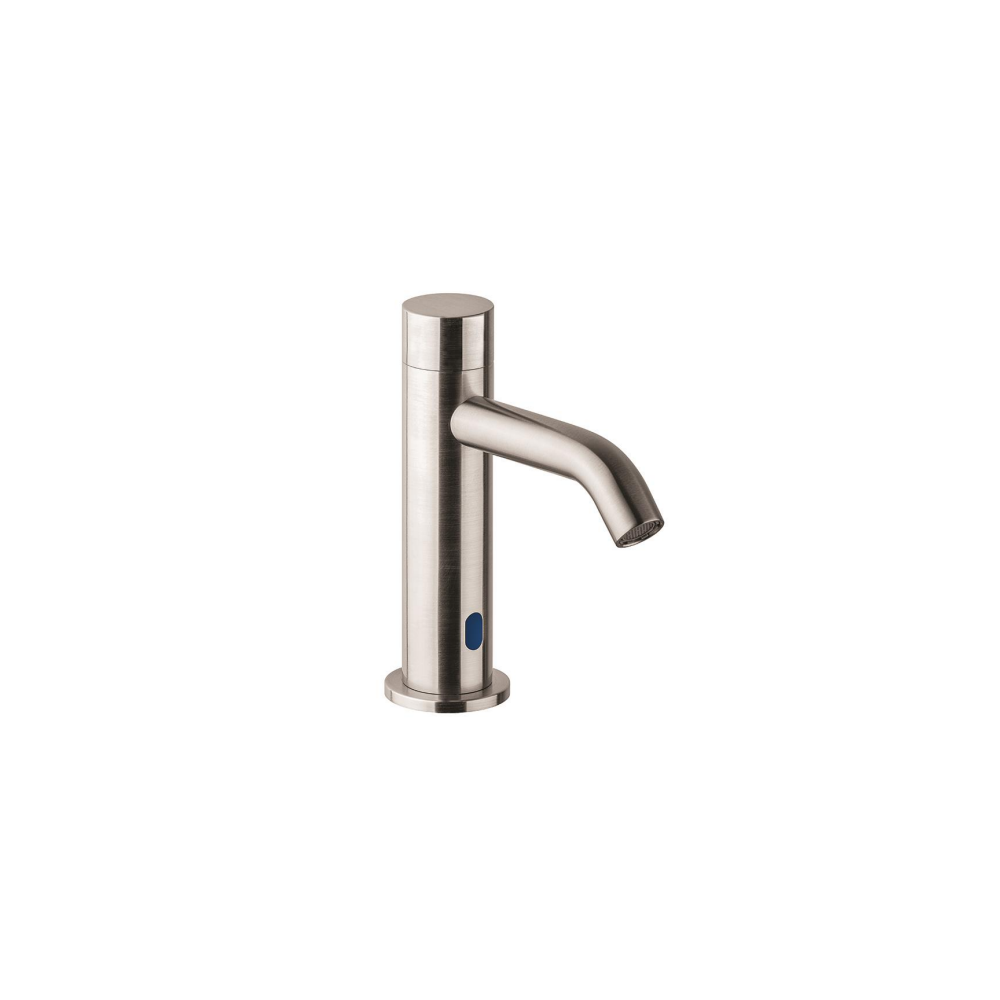

• Type: Electronic basin faucet
• Visible parts in brushed stainless steel
• Bistable solenoid valve 6V (external)
• Infrared sensor
• Lithium battery 6V CRP2 (external)
• Flow rate:
• 6l/min (w/limiter)
• Supply pressure: Min 1 - Max 8 Bar
• Supply temperature: 5 - 70°C
• Power supply: 6V lithium battery (included)
• Estimated battery life: 220000 operations
• Activation: infrared presence detection sensor
• Self-dispensing: Every 24 hours since last use
• Vandal lock: Automatic shut-off after 60 seconds of continuous dispensing
• Low battery lock: Low battery indicator led: in case of low battery, the faucet is locked closed
• Manual by-pass: in case of low battery, the mixer opens/closes and mixes with progressive cartridge

DIMENSIONS

Height: 157 mm

Depth: 115 mm

CERTIFICATIONS

IDRAL ELECTRONIC FAUCETS

Idral's electronic faucets represent an innovative solution. Based on state-of-the-art technologies, they allow low water and energy consumption. Each product in this line possesses everything expected of an advanced electronic solution: water and energy savings, maximum hygiene and prevention of the spread of bacteria, high reliability, versatility, and Italian design.
