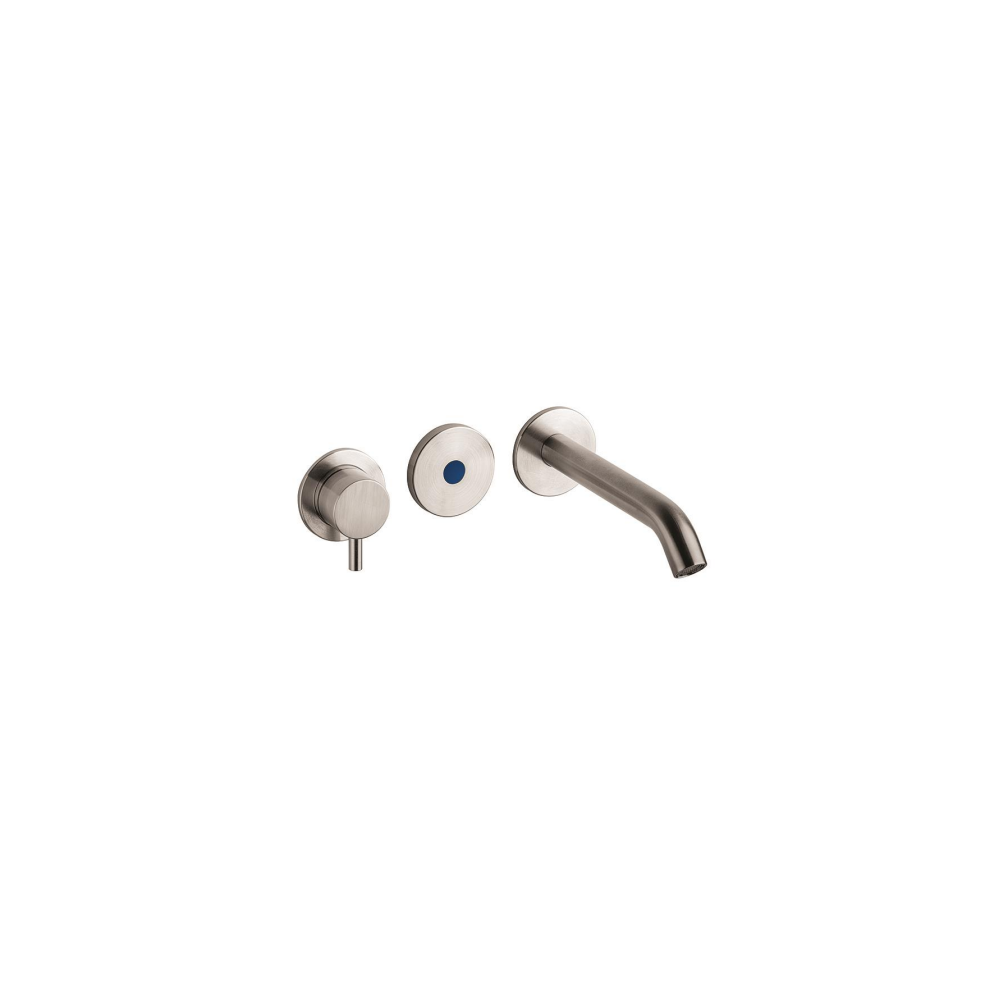

ITEM CODE: I84M2-00000

TECHNICAL FEATURES.

• Type: Built-in electronic basin mixer
• Visible parts in brushed stainless steel
• Horizontal installation
• 6V bistable solenoid valve (external)
• Infrared sensor
• 6V CRP2 lithium battery (external)
• Installation frame for wall or plasterboard wall
• Built-in adjustable from 0 to 5mm
• Mixer with ceramic disc cartridge
• Flow rate:
• 6l/min (w/limiter)
• Supply pressure: Min 1 - Max 8 Bar
• Supply temperature: 5 - 70°C
• Power supply:
• 6V lithium battery (included)
• Estimated battery life: 220000 operations
• Infrared sensor ON/OFF mode: opening and closing of water controlled by placing your hand 3-8 cm from the sensor
• Self-dispensing: Every 24 hours since last use
• Vandal lock:
• Automatic shut-off after 60 seconds of continuous dispensing
• Low battery lock: Low battery indicator led: in case of low battery, the faucet is locked closed
• Installation material to be paid by customer

DIMENSIONS

CERTIFICATIONS

IDRAL ELECTRONIC FAUCETS

Idral's electronic faucets represent an innovative solution. Based on state-of-the-art technologies, they allow low water and energy consumption. Each product in this line possesses everything expected of an advanced electronic solution: water and energy savings, maximum hygiene and prevention of the spread of bacteria, high reliability, versatility, and Italian design.
