ARTICLE CODE: I70M4-00000

TECHNICAL FEATURES.

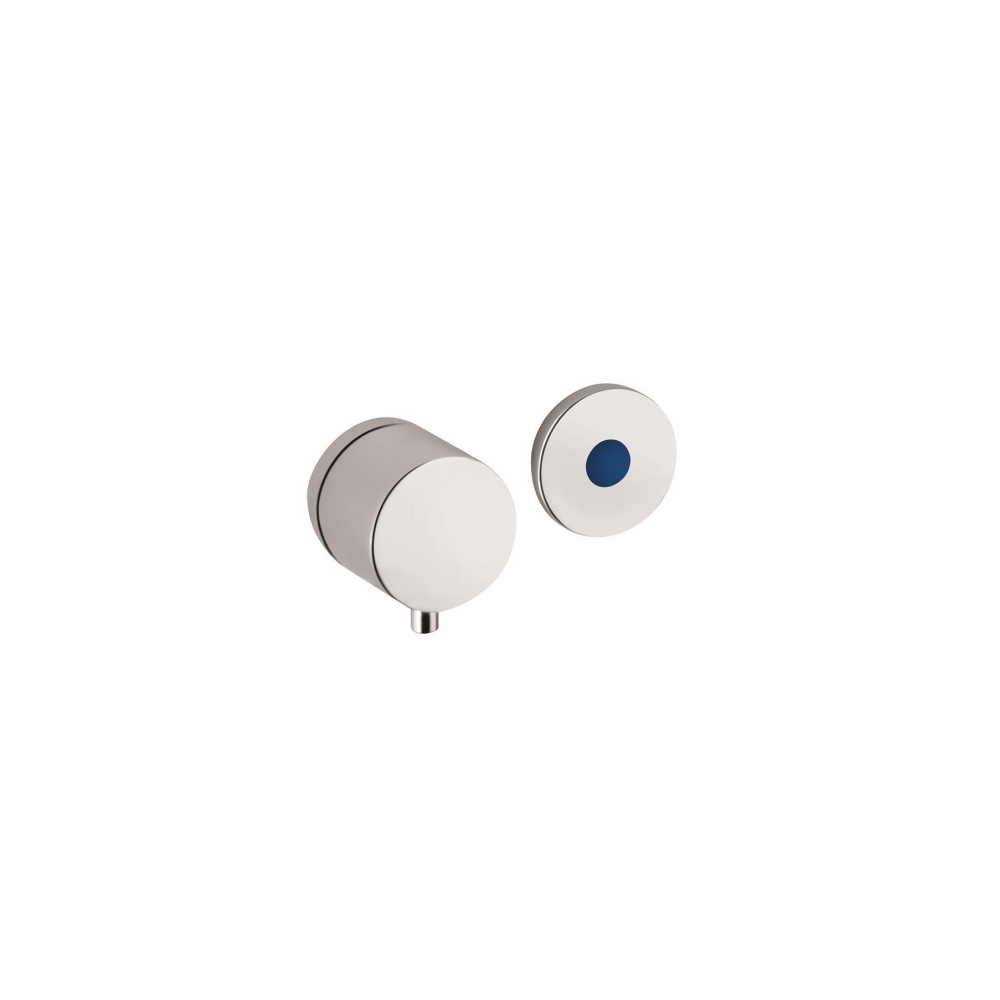

• Type: Recessed electronic shower mixer
• Finish:
• Chrome plated
• Bistable solenoid valve 6V (external)
• Infrared sensor
• Lithium battery 6V CRP2 (external)
• Wall or plasterboard wall installation frame
• Recessed adjustable from
• 0 to 5mm
• Mixer with ceramic disc cartridge
• Chrome-plated Zamak cover plate with concealed screws
• Plastic recessed box
• Recessed adjustable from 0 to 25mm
• Flow rate:
• 6l/min (w/limiter)
• Supply pressure: Min 1 - Max 8 Bar
• Supply temperature:
• 5 - 70°C
• Power supply: 6V lithium battery (included)
• Estimated battery life: 220000 operations
• Infrared sensor ON/OFF mode: opening and closing of water controlled by placing your hand 3-8 cm from the sensor
• Auto-erogation:
• Every 24 hours since last use
• Vandal-proof lock: Automatic shut-off after 60 seconds of continuous dispensing
• Low battery lock: Low battery indicator led: in case of low battery, the faucet is locked closed
• Installation material at customer's charge

DIMENSIONS

CERTIFICATIONS

IDRAL ELECTRONIC FAUCETS

Idral's electronic faucets represent an innovative solution. Based on state-of-the-art technologies, they allow low water and energy consumption. Each product in this line possesses everything expected of an advanced electronic solution: water and energy savings, maximum hygiene and prevention of the spread of bacteria, high reliability, versatility, and Italian design.
